C Tyre Tire Tread Rubber Plate Vulcanizing Press Machine 200 Ton 1000*1000mm

Ask Lasest Price
Brand Name :	HHS
Model Number :	XLB800-2200
Certification :	CE
Price :	USD 50000
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	60 sets/Year
Delivery Time :	15-30 work days

Add to Cart

Product Details
Company Profile

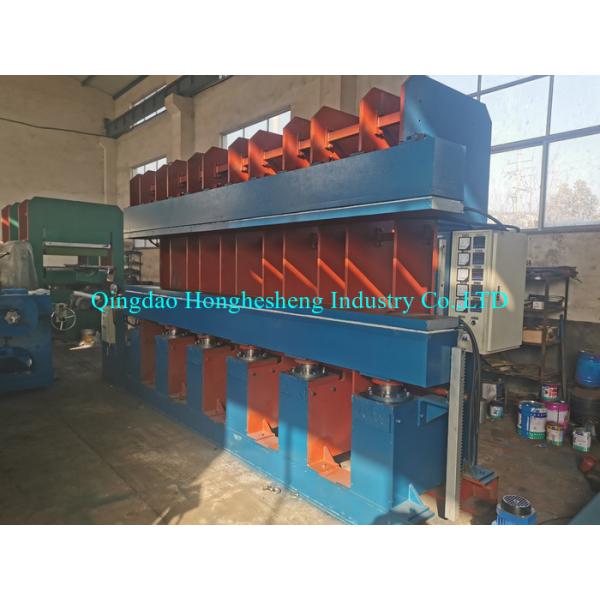

C Tyre Tire Tread Rubber Plate Vulcanizing Press Machine 200 Ton 1000*1000mm

C Tyre Tire Tread Press Machine/Rubber Vulcanizing Press

1. Product Application

about our products:

1. Easy operation and repair

2. The vulcanizing machine is mainly use to produce rubber pads, Each working layer equipped with two sets moulds, it can take turn vulcanization. Thereby improve production efficiency
3. the center distance in certain, allowed to install large diameter of hydraulic cylinder, which can reduce the hydraulic cylinder the amount, and the simple structure, maintenance is less.

4. the beam in the section of force is reasonable, the modulus needed than live in small, can reduce weight

5. manufacturing installation is simple, pipe configuration, whole hidden appearance tidy and beautiful. Box type flat-band plate vulcanizing machine single box board the lateral stiffness ratio of the poor, but because the mast frame type flat-band plate vulcanizing machine frame by frame board are a combination of multiple, so the machine has enough lateral stiffness.

2. Product Paramenters

Model	XLB-800*800	XLB-1000*1000	XLB-1200*1200
mold closing force	160 ton	200 ton	250 ton
plate size	800*800mm	1000*1000mm	1200*1200mm
quantity of cylinder	1 set	1 set	1 set
piston diameter	300mm	380mm	380mm
working layer	1	1	1
daylight	300mm	300mm	300mm
unit area pressure	2.5 Mpa	2.0Mpa	1.8Mpa
Main motor	3 kw	5.5 kw	8 kw
machine weight	about 4000 kg	about 5800kg	about 6800 kg

C Tyre Tire Tread Rubber Plate Vulcanizing Press Machine 200 Ton 1000*1000mm
