    Oil Seal O-Shaped Ring Rubber Kneader Machine Pneumatic Control CE ISO 9001

    Oil Seal O-Shaped Ring Pneumatic Control System Rubber Kneader Machine With CE ISO 9001

    Product Application

    Product Description

    This rubber kneader machine is a type of dispersion kneader, consist of pneumatic control system, electric control system, tilting mechanism, mixing chamber, main driving system, dust sealing device, thermal resistance, rotor and cooling/heating system. You can choose the right model according to your needs.
    Easy operation with convenient maintenance.
    Low labor intensity and low energy consumption.

    Applications

    The series of rubber kneader machines are main used for molding and mixing the materials of natural rubber, synthetic rubber, recycled rubber or plastic, or blending rubber and plastic. They are also suitable for mixing a variety of low viscosity materials.

    It is used widely in sealed fittings factory, rubber and plastic products factory, also applies to blend in paints, dyes, ceramics, medicine, tapes, movie film line etc..

    This machine is the best new-type mixing equipment in rubber and plastics industry. The performance indicators are at or near advanced level of similar products in domestic and abroad.

    1.Rubber tires , tire plant,
    2.Cable plant,
    3.Rubber product for automobile,sealed fittings factory (oil seal, body seal, gasket, belt, hose, tube and etc)
    4.Electric wires,cable plant (rubber, plastic and wire harness and etc)
    5.Adhesive tape & hose factory,
    6.Rubber shoes factory,
    7.Belt (power transmission belt, conveyor belt and etc)
    8.Roll (rubber, plastic, printing, copying machine and etc)
    9.Rubber product for medical (plug, cap, glove, dental and etc)
    10.Sporting goods (golf ball, athletic balls and etc)
    11.Food (chewing gum)
    12.Manufacture of abrasives
    13.Graphite compounds
    14.Sealing compounds
    15.Hard metal compounds

    Oil Seal O-Shaped Ring Rubber Kneader Machine Pneumatic Control CE ISO 9001


    parameters

    Main technical parameters:

    ModelX(S)N-20*32X(S)N-35*30X(S)N-55*30X(S)N-75*30X(S)N-110*30
    Total Volume (L)4575125175250
    Working Volume (L)20355575110
    Power(KW)305575110185
    Tilting Power(KW)1.52.22.23.07.5
    Tilting Angle140°140°140°140°140°
    Rotational Speed (r/min)40/3240/3240/3240/3240/32
    Size(mm)3100*1300*24503200*1900*29453300*1900*29003760*2143*3135

    4075*2712*3580

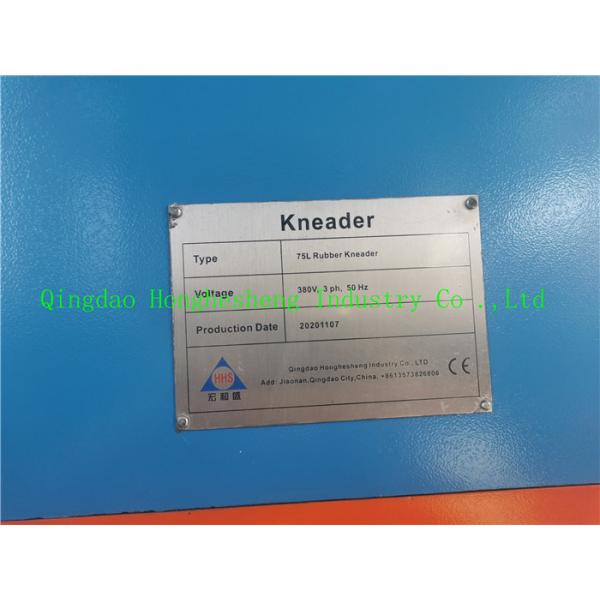

    detailed pictures
