Sectional Type Rubber Conveyor Belt Vulcanizing Machine For Hot Joint Press

Ask Lasest Price
Brand Name :	HHS
Model Number :	XLB1200/1600/1800/2100
Certification :	CE
Price :	USD 10000-80000
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	60sets/Year
Delivery Time :	15-30 work days

Add to Cart

Product Details
Company Profile

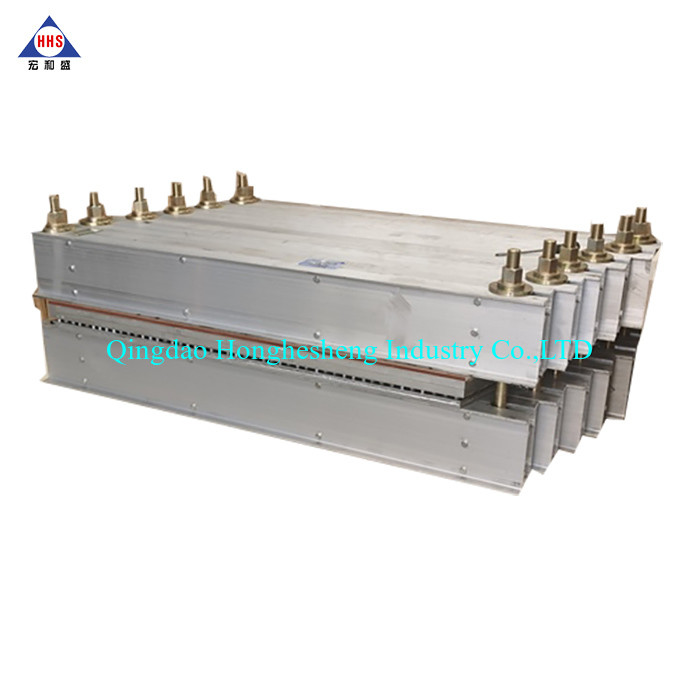

Sectional Type Rubber Conveyor Belt Vulcanizing Machine For Hot Joint Press

Sectional Type Rubber Conveyor Belt Welding Vulcanizing Machine For Hot Joint Press Vulcaniser

Product Name	2000MM Rubber Conveyor Belt Splicing Joint Hot Vulcanizing Press Machine
Keywords	Heat press machine
Type	Heat splicing machine
Size(LWH mm)	27201000950
Application	Heat welding machine
Function	Heating element vulcanizing machine
ANTAI 2000MM Rubber Conveyor Belt Splicing Joint Hot Vulcanizing Press Machine

FEATURES

• Signature “Pressure Bag” uniform pressure system.
• Custom “Extruded Plank” cooling system within platens.
• Innovative “Silicone Element” fast heating system.

• Automatic mute pressure pumps for operating pressures above 20kg/cm2(2.0MPa).

• ZLJ platens are built to order with all dimensions offered to accommodate various belt widths.
• DELIXI electrical apparatus element assembled into insulating and waterproof control panel.
• All electrical systems are CE, CSA and UL approved.

Click here for more information !!!

SPECIFICATIONS
1. Voltage: 220V 380V 415V 525V 660V 1140V 50HZ 60HZ(Customize available according to your requirement)
2. Quick water cooling device: 15 minutes From 145 ℃down to 80 ℃or even lower
3.Cooling source: Water or Air
4.Heating source: Electricity
5. Heating time: from room temperature to vulcanization temperature need less than 20 minutes
6. Heating plate surface temperature difference: ± 1 ℃
7. The temperature adjustment range: 0 ~ 200 ℃(custom)
8. Vulcanization pressure: Max 2.5MPa.
9. Curing temperature: 0 ~ 99min (according to the thickness of the belt to adjust)

Usually 10mm~25mins, 20mm~35mins
10. Automatic mute pressure pump
11. Automatic control panel: insulating and waterproof, security alarm, Auto power-off when reach the vulcanization temperature.
Upgrading explosion proof control box option available.
