Product Description
Introduction:

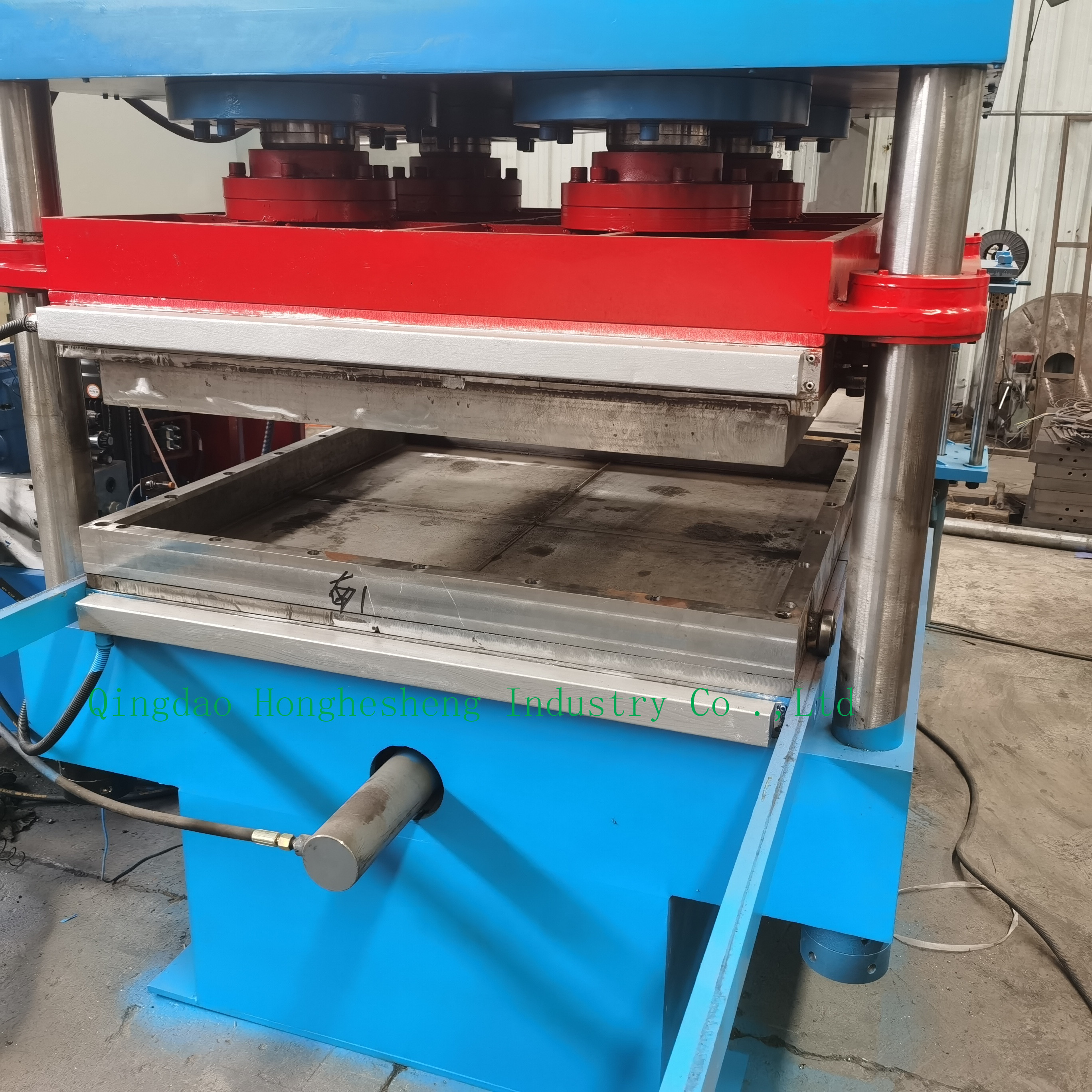

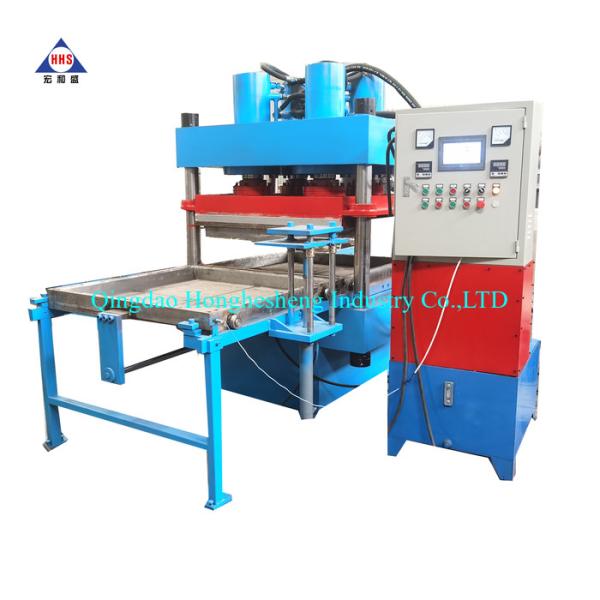

The machine applies to vulcanizing various kinds of rubber and
plastic model products as well as non-model products.
The machine is column structure with below pressing form (upwards).
Under the hydraulic pressure, the piston plunger ascends to make
hot plate close for getting pressure, while the piston plunger
descends (namely hot plate turning on) by deadweight of hot plate,
platform and piston plunger to drive working fluid to fuel reserve
tank to achieve the aim of descending (namely turning on).
1.High speed open/close mold, stable pressure, good control in
vulcanizing time and temperature.
2. automatic and manual operation system,design by your order.
3.stabile performance , good quality and reliable service
4.the right of import and export , Supply promptly quickly
Flow chart of rubber floor tile making machine:
Mixing:
Pour the rubber ranules and coloring pigment into the rubber mixing
machine, with some adhesive, then begin stiring. It will take 4-6
mins to be done.
Weighing:
weigh the stirred rubber powder according to the floor tiles
thickness you want to make.
Paving and Pressing:
pour the needed quantity rubber powder into the mould, and float it
by trowel. On the bottom ,can be with some coarse and black rubber
powder, but on the surface should be with fine and colored powder,
it can ensure your tiles quality.
Vulcanization Moulding:
Put the mould on the vulcanizer layer, generally , it take 3~8 mins
to make the tiles,time difference based on the thickness of the
tiles you ready to make. After finished, it will automaticlly
separated, then put it somewhere to dry.
Inspecting:
Inspect the tiles' surface . If no aberration, no flaw, then it is
of high quality products.
Main Technical Prameter:
| Model | XLB-D550x550 Rubber tile press machine |
| Pressure | 50Ton |
| Heating Plate | 550x550mm |
| Product size | 500x500mm, thickness 20mm,25mm,30mm (or as customer’s need) |
| Working Layer | 4 layers |
| Layer distance | 150mm |
| Diameter of plunger | Φ200mm |
| Plunger stroke | 400mm |
| Motor power | 2.2kw |
Remarks:
Heating platen size, space of heating platen, layers, ways of
heating could be produced as customer's requirement.
We also can according to the customers' requirement, and design the
non-standard type of rubber tile press.
Service:
1. one year guarantee and life long maintaince.
2. Any problem, we will feed back within 24 hours.
