Pressed Rubber Flooring Machine /Gym Rubber Floor Making
Machine/Fully Automated Rubber Tile Machine
product description
This machine is used to heat , vulcanize and solidify the rubber
compound from mixer machine to be 500*500mm and 1000*1000mm rubber
tiles .One set molds includes one top mold and two bottom mold . As

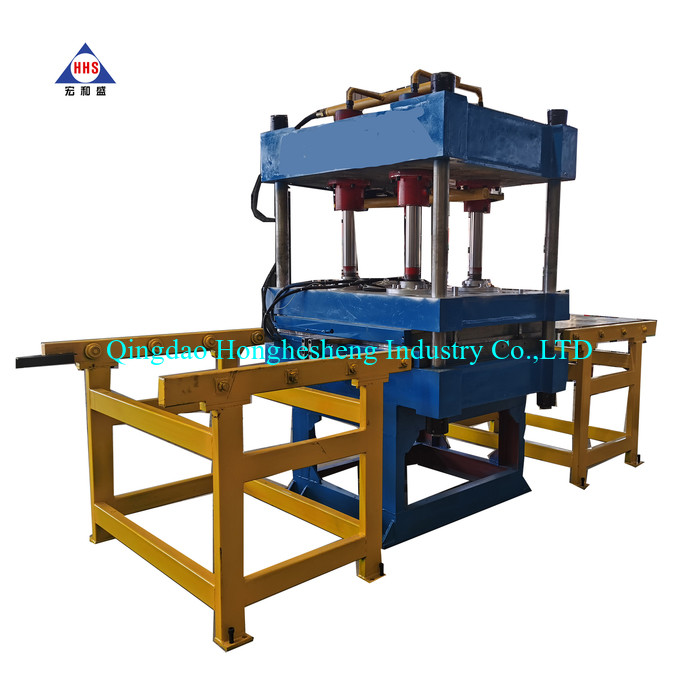

showed in picture , the machine is equipped with adjustable rail
device , which is used to push mold in and out for easy operation.
Configuration of rubber tile making machine
A: Vulcnaizing press Machine Frame: The material is Q345 steel
welded, and using Co2 protection welding process. high strength, no
air hole, not easy broken, then using the tempering process, to
release the internal stress. can not out of shape, at last using
the CNC machining center treatment.
B: Vulcnaizing press Machine Heating pipes: Stainless steel ,long
using life, material is SUS304
C: Vulcnaizing press Machine Plunger: Vanadium and titanium Alloy
Chilled Cast Iron, High hardness (68~72HS )and good abrasion ,
resistance, can not easy broke the seals
D: Vulcnaizing press machine Hydraulic cylinder: Nodular cast iron,
the material is QT-500, hardness 68~72 HS, using the annealing
treatment, and flaw detection process choose the best one.
E: The Vulcnaizing press machine heating plate :35# steel
F: Vulcnaizing press machine Thermal baffle: Silicon 3 Calcium
plate, not easy broke seals
G: Vulcnaizing press machine Valve: Cartridge valve, not easy
broken and no need maintain brand from Huade (China-Germany joint
venture )
H: Hydraulic pump: Brand from YUCI YUKEN HYDRAULICS Co., LTD Japan
brand
I: Vulcnaizing press machine Low-voltage apparatus: The brand from
Schneider or Mitsubishi
PLC Details configuration of OULI Made Rubber Floor Tile Making
Machine / Rubber Hydraulic Tile Vulcanizing Press
Configuration of Rubber Interlocking Tiles Vulcanizing Press
Machine/Recycling Paving Tile Making Press Machine
Molds for Be Novel In Design New Style Crumb Rubber Tile Making
Machine
Features
Manual push-pull mold
High output and efficiency
Easy and safe operating
Technical Parameters
| Parameter/model | XLB 1200*1200*1 |
| Pressure(T) | 1100*1100*60 |
| Hot plate size (mm) | 150-300 |
| Working layer | 1 |
| Hot plate quantity | 2 |
| Piston stroke(mm) | 150-300 |
| Motor power(kw) | 5.5/7.5 |
| Weight(kg) | 4000 |

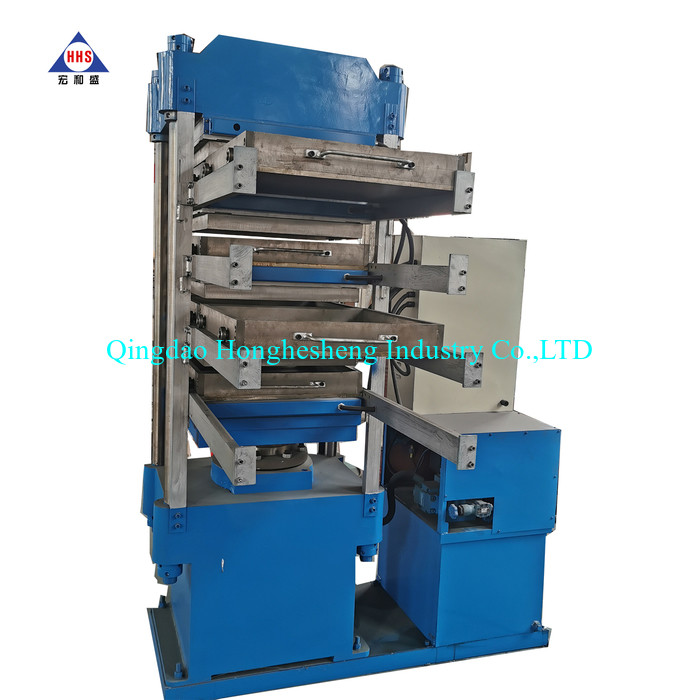

Detailed Pictures
