XK-450 Automatic Stock Blender Two Roll Open Mixing Mill / Rubber
Mixing Mill / Open Mixer
production

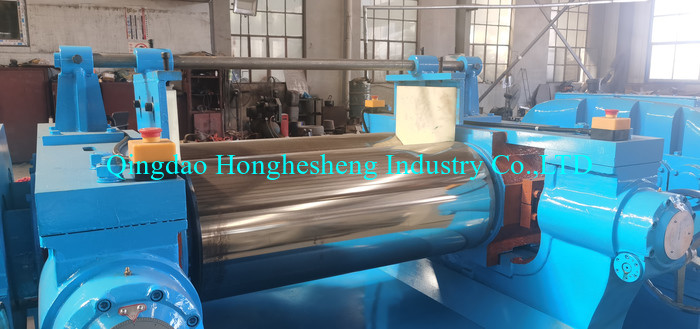

1. Rollers: the roller adopts chilled cast iron alloy (LTG-H) with
75-80 HS ,after quenching and precision processing with long service
life,so the surface is hard and wearable;it is harder than others
the commom is 72HS.
2. Emergency Stop Device:The machine is also equipped with
emergency stop buttons or emergency pull rod. When an emergency
happens, just press the emergency button or pull the pull rod,the
machine will stop immediately. It is safe and reliable;
3.Motors: We always use OMRON,SIMENS ect brand electric parts or you can
choice the ordinary brand.all the motor is high quality and
effiency,save energy,low noise,small vibration.
4. Overload: This open mixing mill has overload protection devices,
Machine will be stopped automatically, if overloaded;

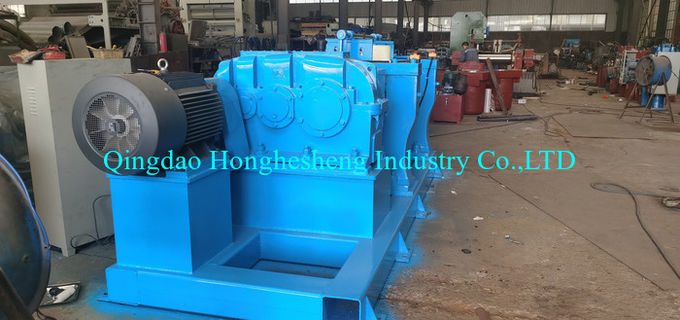

5. Gear Box:The transmission system adopts hardened reducer,which
has a compact structure with higher transmission efficiency,lower
noise and longer service life(ZQ reducer and planetary reducer is
optional);
6. Bearing Bush:Double Row Spherical Roller Bearing can save energy
by 20-30%(Nylon Bushing and Brass Bush is optional);
7. Structure:The base and frame are welded and treated by annealing
for stress relieving;
8. Sealing Device:The seal structure with special design can
eliminate the leaking phenomenon of lubricating oil;

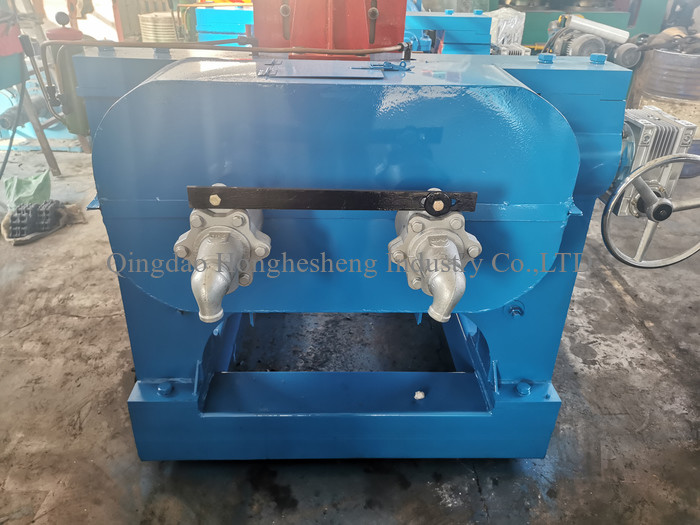

9.Cooling system:circulation of steam and tap water can be through
rollers to control the temperature
10.Safe Electrical Parts: All electrical connections are safe:short
circuit is not possible by any means.
Technical parameters:
| Version | XK-160 | XK-250 | XK-300 | XK-400 | XK-450 | XK-560 | XK-660 |
| Roll diameter(mm) | 160 | 250 | 300 | 400 | 450 | 560 | 660 |
| Working length of rolls(mm) | 320 | 620 | 750 | 1000 | 1200 | 1530 | 2130 |
| Front roll surface speed(m/min) | 8.99 | 15.3 | 15.1 | 18.65 | 24.32 | 27.72 | 28.6 |
| Friction ratio | 1:1.35 | 1:1.1 | 1:1.27 | 1:1.27 | 1:1.27 | 1:1.2 | 1:1.24 |
| Max.nip (mm) | 4 | 8 | 8 | 10 | 15 | 15 | 15 |
| Capacity per.batch (kg) | 1-2 | 10-15 | 15-20 | 18-35 | 25-50 | 35-50 | 165 |
| Motor power (kw) | 5.5 | 18.5 | 22 | 37 | 55 | 90 | 245 |
| Overall dimensions(mm) | 1160*920 *1370 | 3120*1322 *1500 | 3580*1550 *1695 | 4350*1850 *1780 | 5670*2390 *1670 | 5845*2284 *1978 | 7465*3662 *2080 |
| Weight(kg) | 1000 | 4000 | 5200 | 7600 | 12000 | 23000 | 49000
|

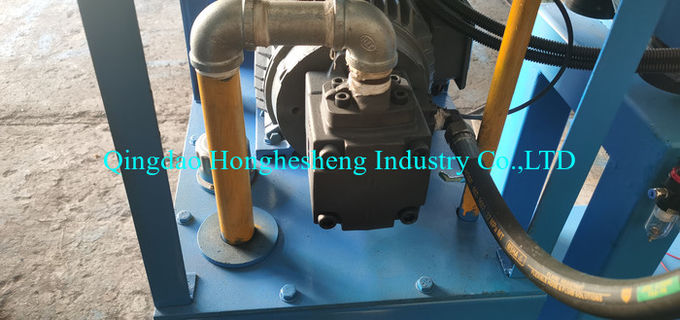

More detailed picture
